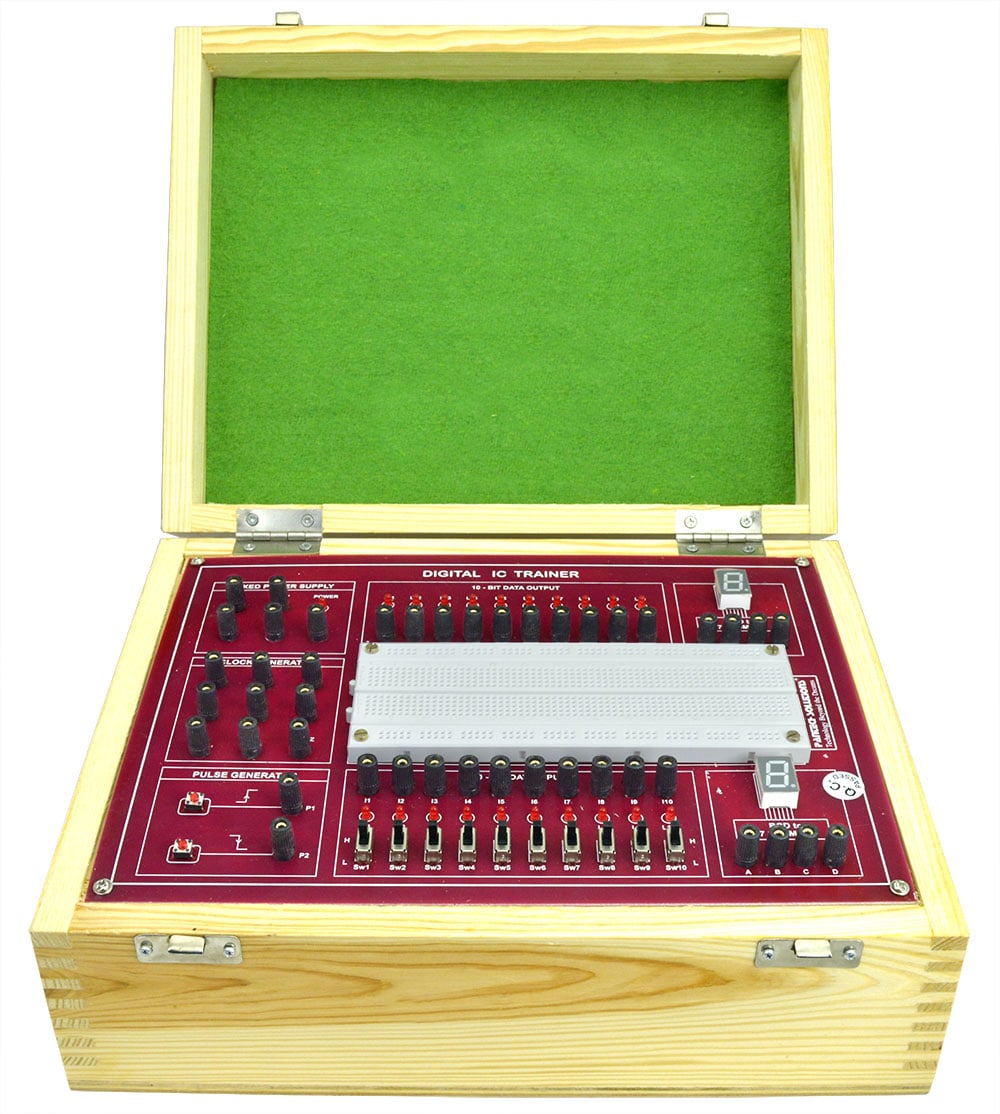

Digital IC Trainer

digital-ic-trainer PART NO: PS-TRAINER-DIT

Overall rating
1 Rating

Learning Center

  • 10 Logic Input switches with LED Indication for logic low and logic high.
  • 10 LED for output indication with LED Driver.
  • Fixed Clock generation of 128 KHz, 64 KHz, 32 KHz, 16 KHz, 8 KHz, 4 KHz, 2 KHz, 1 KHz, 500 Hz.
  • Logic Pulsar provides single pole double throw bounce less pulses of Low to High and High to Low transitions.
  • Solder less Breadboard with 840 tie points.
  • 1 No’s of Breadboard.
  • Two seven-segment LED display with decoder driver and provision for BCD input
  • Fixed DC Power Supply: +5V/500mA, -5V/500mA +12V/500mA, -12V/500mA.
  • Input supply 230V + 10%, 50Hz AC voltage
  • Trainer is housed in a strong, wooden cabinet.
  • All interconnections (Input/output) are made using 2mm banana Patch Cords.
  • Digital_IC_Trainer.pdf
