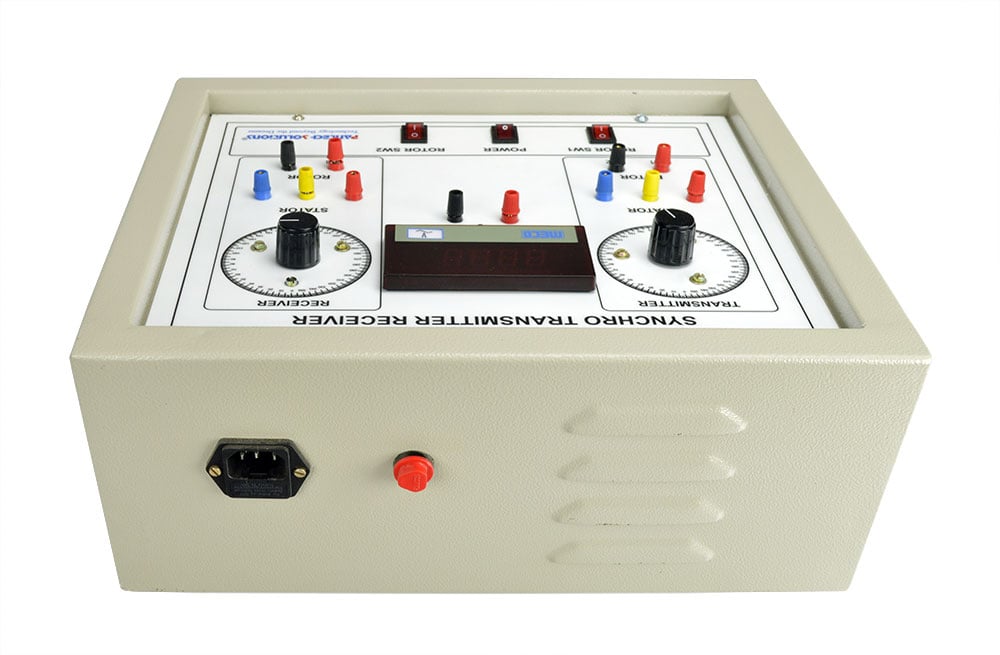

Synchro Transmitter and Receiver

Call for Price

Synchro Transmitter and Receiver

SKU: PS-LAB-Synchro Transmitter and Receiver Category:



The constructional features, electrical circuit and a schematic symbol of synchro transmitter are shown in figure-2. The two major parts of synchro transmitters are stator and rotor .The stators identical to the stator of three phase alternator. It is made of laminated silicon steel and slotted on the inner periphery to accommodate a balance three phase winding. The stator winding is concentric type with the axis of the three coil 120 degree apart. The stator winding is star connected(Y – connection).


  • One no. of phase shift transformer provided for 90ophase shifting of main wire voltage
  • Two no, of three phase synchronous motor given for transmitter side & receiver side.
  • Three power switch control the transmitter & receiver.
  • One no. of digital voltmeter provided for stator winding voltage measurement
  • 1 phase input, all are mounted on a nice cabinet


  • To measure the Stator output voltage with respect to rotor position and plot the graph.
  • To study the Rotor position of Synchro transmitter and Receiver

Technical Specification

  • Kit Working voltage : (220-240)VAC
  • Input Voltage : 50V AC
  • Input Frequency : 50Hz
  • Output Voltage : 0 TO 50V DC
  • Output Current : 1Amps

Bundle Contents

  • Synchro transmitter &receiver
  • Patch cards
  • 6A power supply card
  • 1A Fuse
  • Manual

Additional information

Weight 1.000000 kg
